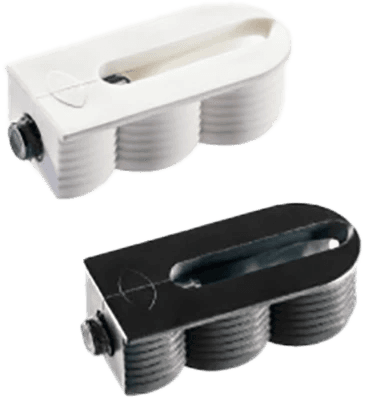

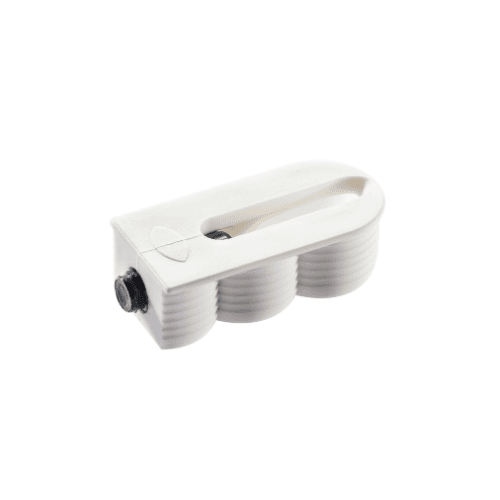

186310 - Cabineo 8 Connector - White - 500 Pieces - Lamello
For Center Panels
Includes Ball Tip Driver
Use in thinner material or shared, ¾” partitions/center panels
Time-saving cabinet connector works without edge drilling and with very high clamping force

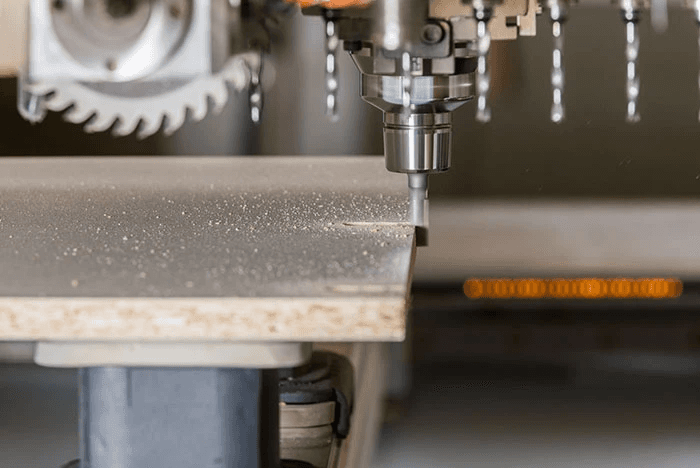

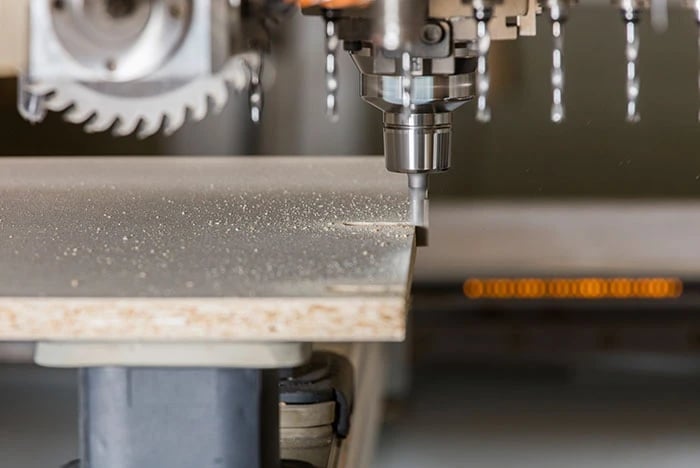

- Efficient machining with all CNC machines
- Faster machining & assembly
- Stronger connections
- Pack of 500
Cabineo from Lamello, and is an outstanding solution for cabinet shops and manufacturers using nested-based CNC routers. The tool path may be quickly machined with a standard, straight-shank router bit without a tool change. The Cabineo connectors are simply tapped into the routed pocket and join cabinet components together by screwing into a mating 5mm shelf pin hole with nearly 200 pounds of clamping force. Cabineo may be covered with aesthetic cover caps, or parts may be inverted to allow for a completely invisible application. Because there is no pin or stud required with Cabineo, all components may be shipped to the job site as a true flat-pack, RTA solution. The M6 version of the Cabineo connector uses a metal helical insert or may be fastened directly into a tapped hole in metal furniture or fixture components.
More Advantages
- Installation of fixed shelves or vertical dividers in an already assembled unit
- Detachable for transport or if the fixed shelves need adjusting
- Shallow element of 10 mm allows for panels from 12 mm thickness
- Corner joints with Cabineo 12 (drill hole Ø 5 × 12 mm)
- Dividing panel joints with Cabineo 8 (drill hole Ø 5 × 8 mm) from material thickness 16mm
- Use with or without cover caps. Cover caps are available in various colors
- Metal insert threaded version available for exceptionally strong connections or for wood-to-metal component connections
Features and Benefits
Time-savings for the whole production process! Simple, Fast & Strong!
- Time-saving in production
- Optimized process due to surface machining; no edge drilling necessary
- Only one tool change from 5 mm to 15 mm drill; or rout the profiled shape with no tool change – use a standard CNC spiral bit
- No dowel holes means less drill holes
- Time-saving in transportation
- Efficient pre-installation of the one-piece connector in the factory

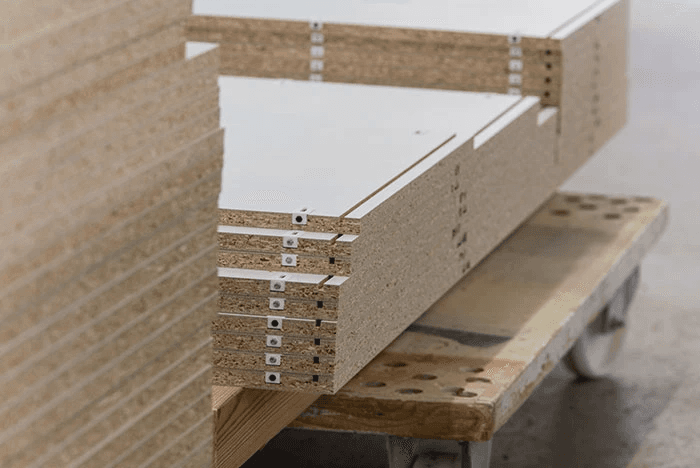

- Flat-Pack delivery with pre-installed connectors
- Connectors delivered installed in the workpiece; thus no hardware needs to be shipped separately
- Time-saving in the assembly
- One-piece connector without dowels; no pre-assembly of screws or dowels in the side panels necessary
- Easy positioning in the drill hole due to the protruding screw

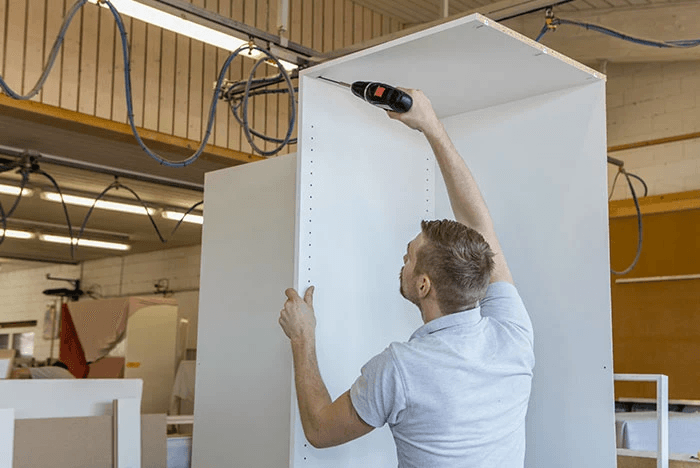

- Fast assembly with a cordless drill
