101403DS - Zeta P2 - Diamond Cutter and Drill Jig - Lamello

• Superior quality and precision
• Fast machining of all P-System connector slots
• Unique Integrated vertical mechanical drive
• Unique Integrated vertical mechanical drive
• Comes in Systainer3 case with Clamex drill jig, drill bit, and additional accessories.

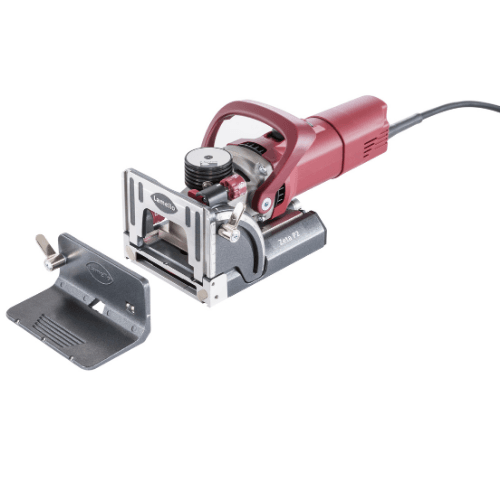

The Zeta P2 is the profile biscuit joiner for the Lamello P-System may be used to join components in solid wood, plywood, MDF, particleboard, plastics, solid surface, and more.

The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 is the centerpiece of this profile biscuit joiner. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove. All P-System fittings are then manually inserted into this groove, ensuring a fast form-locking anchorage.

The Zeta P2 can cut P-System grooves for connectors with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters.

The vertical movement for the profile groove is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. The vertical mechanical drive combines process precision and reliability with a low-wear, fully mechanical construction.

The Zeta P2 can also be employed as a standard biscuit joiner for original biscuits by simply deactivating the profile groove function and changing to a 4mm blade.

• Zeta P2
• P-System Cutter - Either Diamond or Carbide, depending on the item selected - see description above.
• Stop Square
• Suction Stubs 23 + 36mm
• Angle Disc
• Spacer plate 2mm
• Spacer plate 4mm
• Tool set
• Clamex P-System Drill Jig, Including Drill
• Lamello Systainer3
